該系列設備內膽為優質 316L不銹鋼，夾套采用304不銹鋼材質，完全符合GMP和FDA相關標準。主要用于對以下幾 大類產品的濕熱滅菌操作：B/c潔凈區域的無菌衣、各種抗生素、灌裝用膠塞、鋁蓋及鋁桶，凍干粉針用膠塞、鋁蓋及鋁 桶等； 以及其他一些高要求的場合。該系列產品為內外雙重結構， 工作過程中內層為純蒸汽， 套層采用普通鍋爐蒸汽， 同 時具有真空排氣及干燥功能。

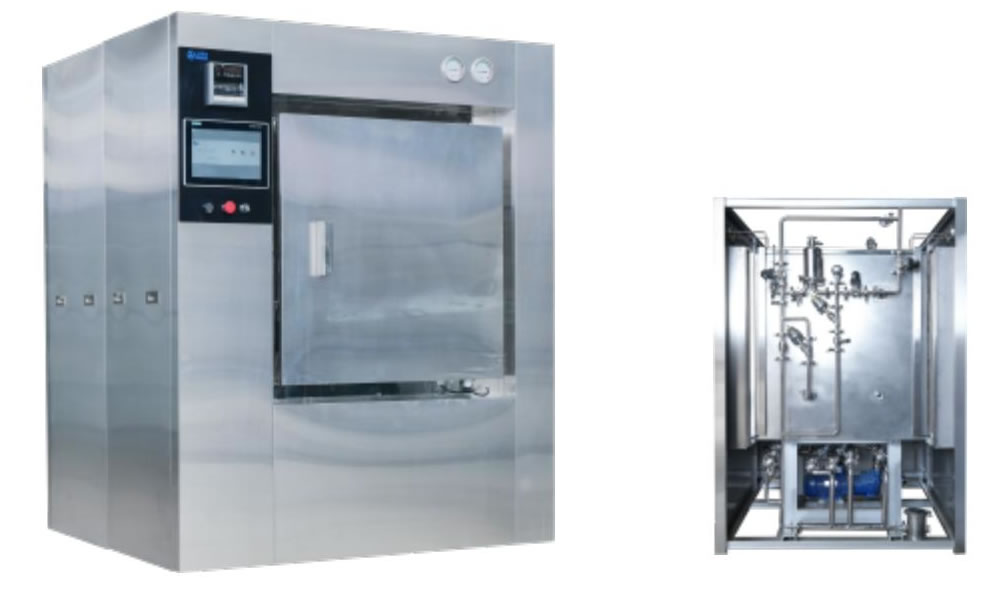

The chamber of this series of equipment is high-quality 316L stainless steel, and the jacket is made of 304 stainless steel, which fully meets the relevant GMP and FDA standards. It is mainly used for wet heat sterilization of the following categories of products: aseptic clothes in B/c clean areas, various antibiotics, plastic stoppers, aluminum caps and aluminum drums for filling, and plastic stoppers, aluminum caps and aluminum drums for freeze-dried powder needles; And other demanding occasions. This series of products for the internal and external dual structure, the working process of the inner layer is pure steam, the jacket layer using ordinary boilersteam, while with vacuum exhaust and drying functions.

●主體由內外二層組成，內膽為優質316L不銹鋼，夾套采用 304優質不銹鋼，自動焊接一次成形。全不銹鋼拉絲板裝飾外 罩。具有標準 GMP驗證接口，方便用戶隨時進行設備驗證。雙路 進汽，內層進純蒸汽，管路和閥門為316L材質；夾層進工業蒸 汽，304不銹鋼衛生級管路。
●控制系統采用德國西門子PLC，觸摸屏(可選配計算機控制)， 微型打印機系統?？刂葡到y(tǒng)穩定，控制溫度精確。并具有完善的 數據記錄，打印，保存。
●管路系統采用德國GEMU氣動閥和納西姆真空泵等最優化配置。
●可配備符合 PIV、PV 實驗室要求的保壓滅活和滅活罐滅活系統。
●客戶可選訂設備具有自產純蒸汽功能。
●The main body is composed of two inner and outer layers, the chamber is high-quality 316L stainless steel, the jacket is made of 304 high-quality stainless steel, and the automatic welding is formed once . All stainless steel wire-brushed panels trim the outer cover. With standard GMP authentication interface, it is convenient for users to verify equipment at any time. Dual steam inlet, inner layer into pure steam, pipeline and valve for 316L material; Interlayer into industrial steam, 304 stainless steel sanitary pipe.
●Control system using Germany Siemens PLC, touch screen (option- al computer control), micro printer system. The control system is stable and the temperature is accurate. And it has perfect data recording, printing, saving functions.
●The piping system adopts the optimal configuration of GEMU pneu- matic valve and Nassem vacuum pump.
●It can be equipped with pressure-maintaining inactivation and inacti- vation tank inactivation systems that meet the requirements of PIV and PV laboratories.
●Customers can choose to order equipment with self-produced pure steam function.
